How to cut a Lettering Delights SVG with the free Silhouette Studio program.



If you have downloaded yesterday's Lettering Delights' Easter Beasties SVG file but you do not have Make-the-Cut, this is how you can cut that SVG out with your Silhouette SD electronic cutter using Inkscape and the Silhouette Studio program.

Video:



Write-Up:

1. Download and Install the free Inkscape program here: http://inkscape.org/download/?lang=en

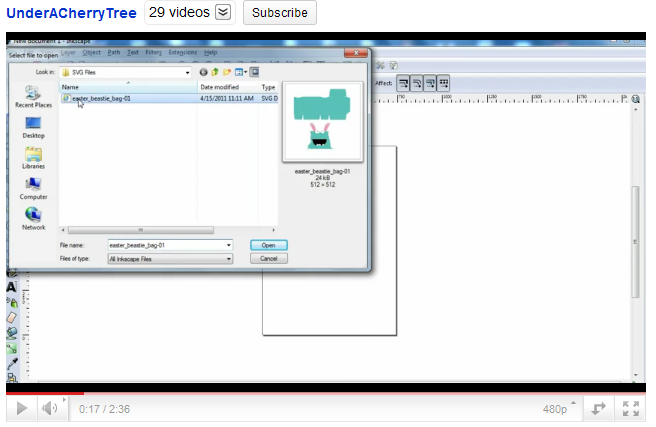

2. Start Inkscape and open the SVG file

3. Separate the layers



 4. Because there are white layers which cannot be seen when they are separated, go to View>Display Mode>Outline to show the outlines of the layers.



5. Rearrange the layers so that they do not overlap.


6. Save the file in the .dxf format


7. Select the 2nd option: "use LWPOLYLINE type of line output."


8. Start Silhouette Studio. Open the .dxf from Step 7


9. Cut.



In the video tutorial, I only show how to cut the monster because I had already cut out the bag separately.

I Ungroup the layers before cutting just to show that it can be done. That's meant for when you only want to delete some layers and cut out the rest.

Also, if you want to cut out a larger size bag and monster, resize the whole thing in Inkscape first before separating the layers and proceed with Step 4 onwards.

When assembling all the cut out pieces, this is the layering order:


By using googly eyes for my bag, the top black layer was no longer necessary so I deleted the layer and further simplified the file. You do not have to do this because the original svg is fine. I am just adding this as an option and if you prefer the look of googly eyes.
